• 2nd row B-pillar grab handles
• 4-way adjustable front seat headrests
• 60/40 flip-up rear split bench seat
• AM/FM stereo w/CD/MP3 player -inc: clock, aux audio input jack
• Chrome ring w/obsidian vanes air conditioning registers
• Cloth 40/20/40 split bench front seat w/manual driver lumbar
• Color-coordinated carpet -inc: carpeted front/rear floor mats
• Color-coordinated urethane steering wheel
• Compass
• Cruise control
• Customer info display
• Delayed accessory pwr
• Deployable cupholder under middle seat
• Display center -inc: warning messages & text functions
• Driver & front passenger covered visor vanity mirrors
• Driver & front passenger door scuff plates
• Fade-To-Off Interior Lighting
• Front passenger side A-pillar grab handle
• Front pwr point
• Front/rear map lights
• Instrument panel mounted cigar lighter
• Manual air conditioning
• Outside Temp Gauge
• Overhead console w/(2) storage bins
• Perimeter Alarm
• Pwr 1st & 2nd row windows w/driver 1-touch down
• Pwr door locks w/autolock feature
• Rear door cupholders
• Rear pwr point
• Remote keyless entry w/integrated key transmitter, illuminated entry & panic button
• SecuriLock anti-theft ignition (PATS)
• Tilt steering column

• (2) front tow hooks
• (4) pickup box tie-down hooks
• 2-ton jack
• 4-wheel drive -inc: electronic-shift-on-the fly (ESOF)
• 78-amp/hr (750CCA) maintenance-free battery
• Easy Fuel capless fuel filler system
• Four-wheel-down towing
• Gas shock absorbers
• Leaf spring rear suspension w/2-stage variable rear springs
• Long-spindle double wishbone front suspension w/coil-over-shock IFS
• Pwr front/rear disc brakes
• Pwr rack & pinion steering
• Trailer sway control

• 3-point safety belts at all rear seat positions
• AdvanceTrac w/roll stability control (RSC)
• Anti-lock braking system (ABS)
• Auto lock safety belt feature for child seats
• Center front 2-point safety belt
• Dual note horn
• Dual stage driver & front passenger seat-mounted side airbags
• Dual stage driver & passenger front airbags
• Hill start assist
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Safety Canopy front/rear outboard side curtain airbags
• SOS post crash alert system
• Tire pressure monitoring system

5.0L V8 FFV ENGINE ($0)

• (STD)

• Order Code 507A
• GVWR: 7,350 lbs Payload Package
• 17" Machined-Aluminum w/Painted Accents Wheels
• Cloth 40/20/40 Front Seat
• Cloth Bucket Seats
• XLT Convenience Package
• Trailer Tow Package
• 5" Chrome Running Boards
• AM/FM Stereo/Clock/Single CD
• SIRIUS Integrated Satellite Radio
• SYNC
• Auxiliary Transmission Oil Cooler
• Upgraded Radiator
• SelectShift Transmission
• Self-Dimming Rear-View Mirror
• Power Adjustable Pedals
• Heated Power Side Mirrors
• 4.2" LCD Screen in Cluster
• 6-Way Power Driver Seat
• Leather-Wrapped Steering Wheel
• Center Console
• 4 Speakers
• Front Center Armrest w/Storage
• Compass
• Variably intermittent wipers
• Traction control
• Tilt steering wheel
• Split folding rear seat
• Speed-sensing steering
• Speed control
• Security system
• Remote keyless entry
• Rear step bumper
• Rear reading lights
• Radio data system
• Power windows
• Power steering
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Low tire pressure warning
• Illuminated entry
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front fog lights
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Bumpers: chrome
• Alloy wheels
• Adjustable head restraints: driver and passenger w/tilt
• AM/FM radio
• ABS brakes
• Tachometer
• Electronic Stability Control
• Air Conditioning
• 4-Wheel Disc Brakes

• Mileage
• Fuel Economy Est-Combined (MPG): 16
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 16.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3900
• Gross Axle Wt Rating - Rear (lbs): 3850
• Curb Weight - Front (lbs): 3214
• Curb Weight - Rear (lbs): 2372
• Gross Vehicle Weight Rating Cap (lbs): 7350
• Gross Combined Wt Rating (lbs): 13500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1155
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1925
• Suspension
• Suspension Type - Front: Double-wishbone
• Suspension Type - Rear: Live axle
• Spring Capacity - Front (lbs): 3900
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Front: Long-Spindle
• Axle Type - Rear: Semi-Float Beam
• Axle Capacity - Front (lbs): 4050
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 36.1
• Shock Absorber Diameter - Rear (mm): 32.0
• Stabilizer Bar Diameter - Front (in): 1.3
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 0.6
• Rear Brake Rotor Diam x Thickness (in): 13.7 x 0.5
• Tires
• Front Tire Order Code: T7H
• Rear Tire Order Code: T7H
• Spare Tire Order Code: T7H
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: 17.0
• Turning Diameter - Curb to Curb (ft): 47.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Fully-boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 144.4
• Length, Overall w/o rear bumper (in): 231.7
• Width, Max w/o mirrors (in): 79.2
• Height, Overall (in): 76.2
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 164.9
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 33.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 67.0
• Cargo Box Width @ Top, Rear (in): 60.3
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 55.4
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 65.9
• Front Hip Room (in): 60.5
• Second Head Room (in): 40.3
• Second Leg Room (in): 43.5
• Second Shoulder Room (in): 65.5
• Second Hip Room (in): 64.6
• Summary

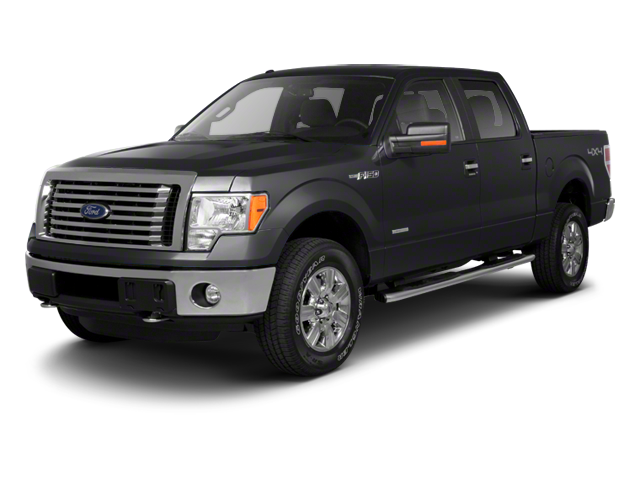

• Vehicle Name: Ford F-150
• Body Style: Crew Cab Pickup
• Body Code: 145" WB
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.5
